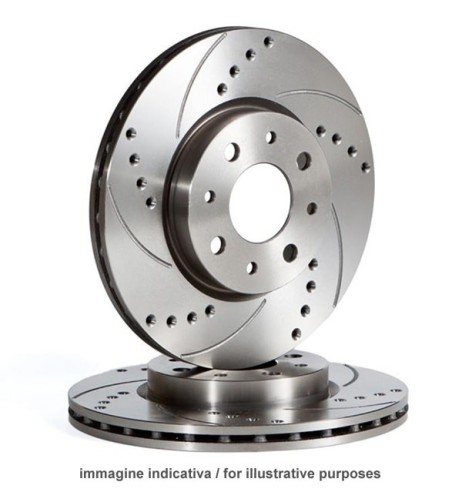

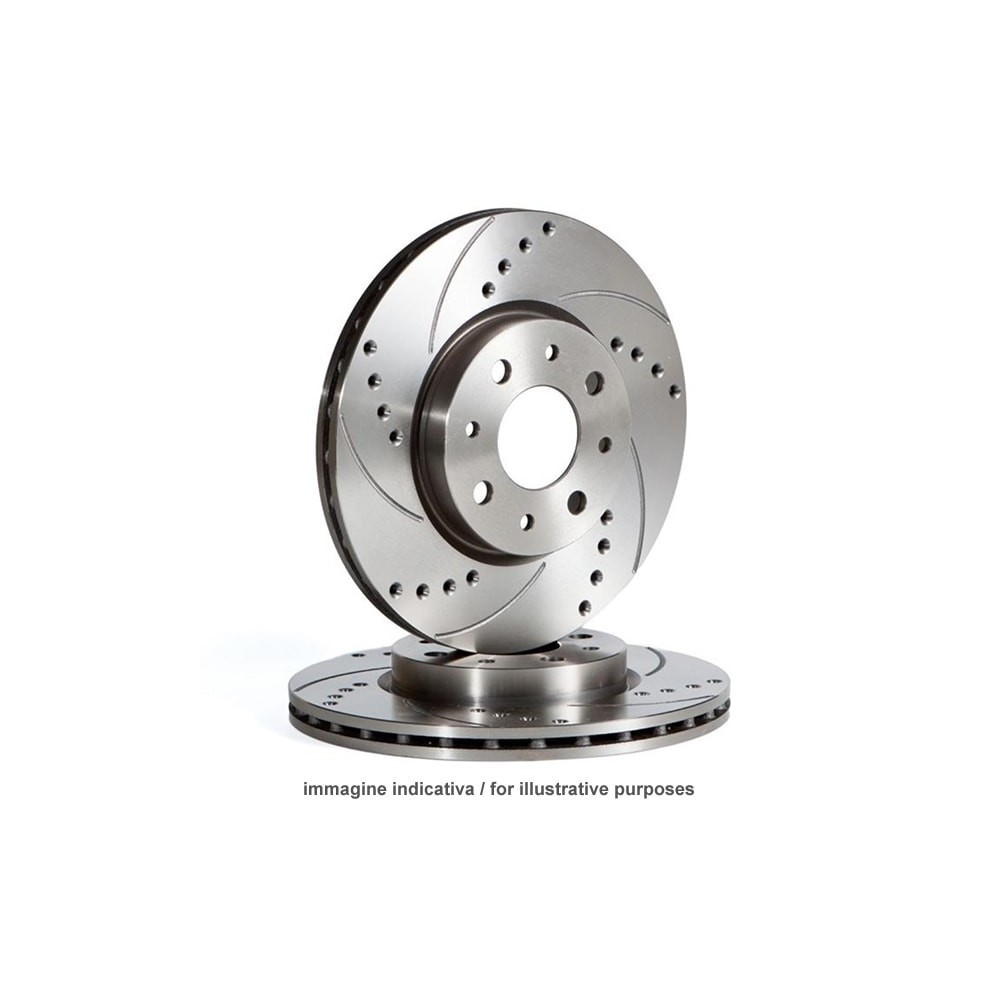

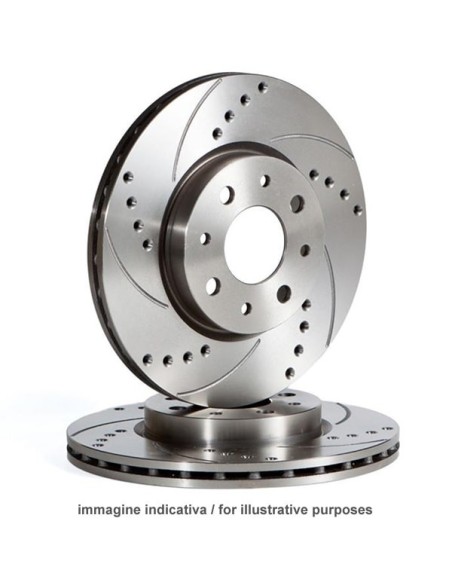

=== [CARATTERISTICHE] ===
| Altezza [mm] | 38 |
| Diametro centraggio [mm] | 71 |
| Diametro esterno [mm] | 326 |
| Diametro [mm] | 326 |
| Marchio controllo | ECE R90 APPROVED |
| N fori | 5 |
| per n articolo | 1421643 |
| Peso [kg] | 7,05 |
| Spessore disco freno [mm] | 20 |
| Spessore min. [mm] | 18 |
| Tipo disco freno | ventilato |
=== [CODICE ORIGINALE] ===
| JAGUAR | C2C25339 |
| JAGUAR | C2D26352 |
=== [APPLICAZIONE] ===
| Modello veicolo | Immatricolazione | Kw | Cv |
| JAGUAR S-TYPE (X200) 2.7 D | 2004/06 - 2007/10 | 152Kw | 207cv |
| JAGUAR XF (X250) 2.0 | 2012/06 - 2015/04 | 177Kw | 241cv |
| JAGUAR XF (X250) 2.2 D | 2011/04 - 2015/04 | 120Kw | 163cv |
| JAGUAR XF (X250) 2.2 D | 2011/05 - 2015/04 | 140Kw | 190cv |
| JAGUAR XF (X250) 2.2 D | 2012/03 - 2015/04 | 147Kw | 200cv |
| JAGUAR XF (X250) 2.7 D | 2008/03 - 2015/04 | 152Kw | 207cv |
| JAGUAR XF (X250) 3.0 AWD | 2012/10 - 2015/04 | 250Kw | 340cv |
| JAGUAR XF (X250) 3.0 D | 2009/03 - 2015/04 | 155Kw | 211cv |
| JAGUAR XF (X250) 3.0 D | 2009/03 - 2015/04 | 177Kw | 241cv |
| JAGUAR XF (X250) 3.0 D | 2009/03 - 2015/04 | 202Kw | 275cv |
| JAGUAR XF (X250) 3.0 | 2008/03 - 2015/04 | 175Kw | 238cv |
| JAGUAR XF (X250) 3.0 | 2012/03 - 2015/04 | 250Kw | 340cv |
| JAGUAR XF (X250) 4.2 Kompressor | 2008/03 - 2015/04 | 306Kw | 416cv |
| JAGUAR XF (X250) 4.2 | 2008/03 - 2015/04 | 219Kw | 298cv |
| JAGUAR XF (X250) 5.0 | 2009/03 - 2015/04 | 283Kw | 385cv |
| JAGUAR XF SPORTBRAKE (X250) 2.2 D | 2012/09 - 2014/04 | 120Kw | 163cv |
| JAGUAR XF SPORTBRAKE (X250) 2.2 D | 2012/09 - 2014/04 | 147Kw | 200cv |
| JAGUAR XF SPORTBRAKE (X250) 3.0 D | 2012/09 - 2014/04 | 177Kw | 241cv |
| JAGUAR XF SPORTBRAKE (X250) 3.0 D | 2012/09 - 2014/04 | 202Kw | 275cv |
| JAGUAR XJ (X350, X358) 3.0 | 2003/05 - 2009/03 | 175Kw | 238cv |
| JAGUAR XJ (X350, X358) 3.0 | 2004/04 - 2007/01 | 179Kw | 243cv |
| JAGUAR XJ (X350, X358) 4.2 | 2003/05 - 2009/03 | 219Kw | 298cv |
| JAGUAR XJ (X350, X358) D 2.7 | 2005/10 - 2009/03 | 152Kw | 207cv |
| JAGUAR XJ (X351) 2.0 Ti4 | 2012/05 - | 177Kw | 241cv |
| JAGUAR XJ (X351) 3.0 SCV6 AWD | 2012/10 - | 250Kw | 340cv |
| JAGUAR XJ (X351) 3.0 SCV6 | 2012/03 - | 250Kw | 340cv |
| JAGUAR XJ (X351) 3.0 SDV6 | 2009/10 - 2016/04 | 202Kw | 275cv |
| JAGUAR XJ (X351) 3.0 SDV6 | 2015/04 - | 221Kw | 300cv |
| JAGUAR XJ (X351) 3.0 V6 | 2011/01 - | 175Kw | 238cv |
| JAGUAR XJ (X351) 5.0 V8 | 2009/10 - | 283Kw | 385cv |
| JAGUAR XK Cabriolet (X150) 3.6 | 2007/10 - 2014/07 | 190Kw | 258cv |
| JAGUAR XK Cabriolet (X150) 4.2 XK8 | 2006/03 - 2014/07 | 219Kw | 298cv |
| JAGUAR XK Cabriolet (X150) 4.2 XKR | 2006/03 - 2014/07 | 306Kw | 416cv |
| JAGUAR XK Cabriolet (X150) 4.2 | 2007/09 - 2009/12 | 291Kw | 396cv |
| JAGUAR XK Cabriolet (X150) 5.0 V8 | 2009/01 - 2014/07 | 283Kw | 385cv |
| JAGUAR XK Coupe (X150) 3.6 | 2007/07 - 2014/07 | 190Kw | 258cv |
| JAGUAR XK Coupe (X150) 4.2 R 32V | 2006/03 - 2014/07 | 306Kw | 416cv |
| JAGUAR XK Coupe (X150) 4.2 XK8 | 2006/03 - 2014/07 | 219Kw | 298cv |
| JAGUAR XK Coupe (X150) 4.2 XKR | 2006/03 - 2014/07 | 291Kw | 396cv |
| JAGUAR XK Coupe (X150) 5.0 V8 | 2009/01 - 2014/07 | 283Kw | 385cv |
