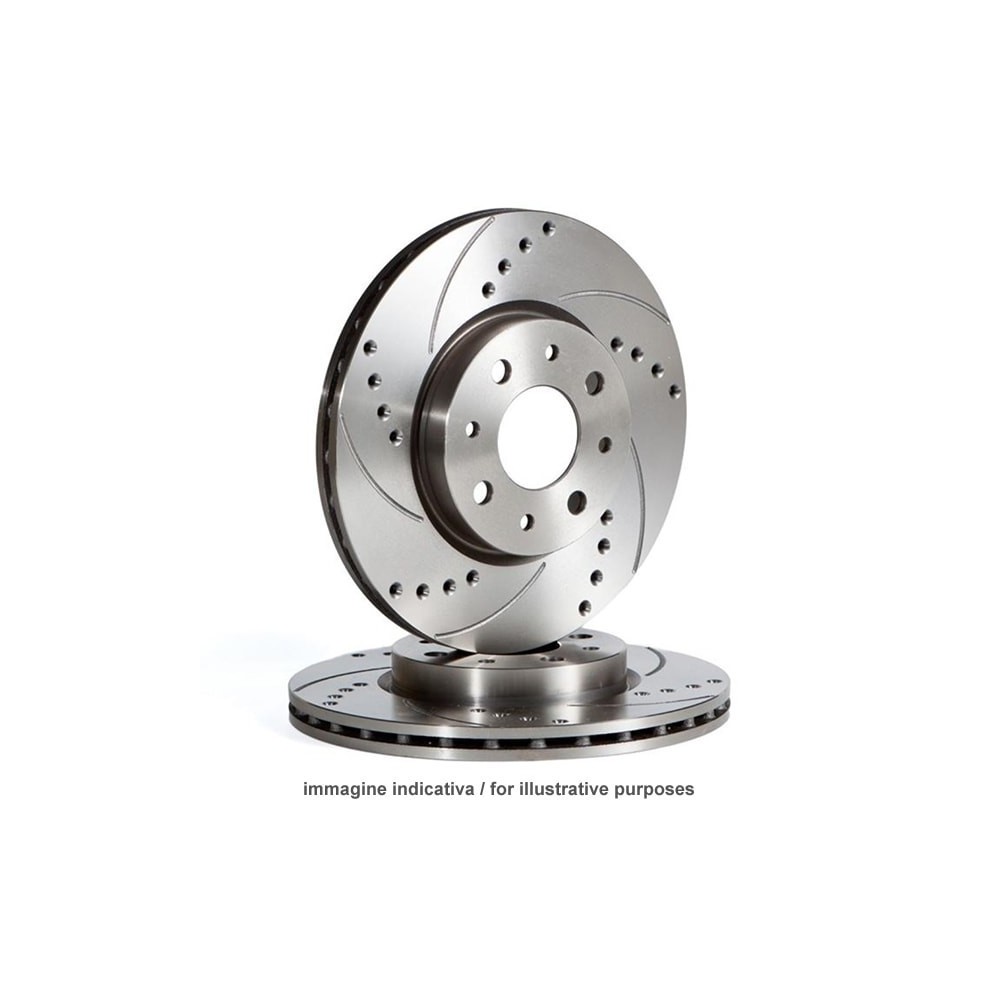

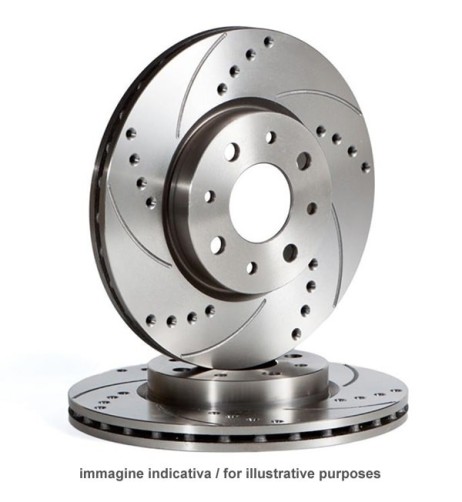

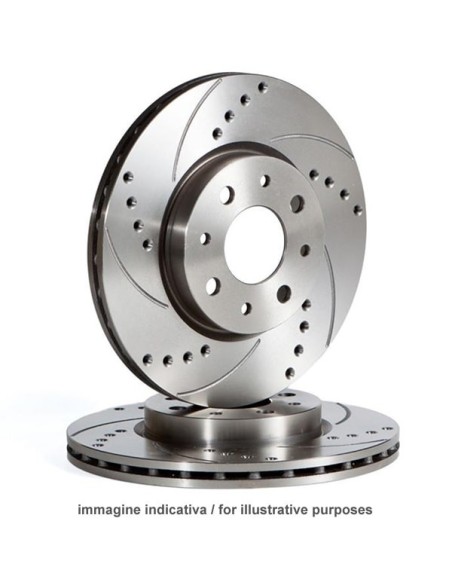

=== [CARATTERISTICHE] ===
| Altezza [mm] | 66 |
| Diametro centraggio [mm] | 75 |
| Diametro [mm] | 330 |
| Marchio controllo | ECE R90 APPROVED |
| N fori | 5 |
| per n articolo | 1421592 |
| Peso [kg] | 9,4 |
| Spessore disco freno [mm] | 24 |
| Spessore min. [mm] | 22,4 |
| Tipo disco freno | ventilato |
=== [CODICE ORIGINALE] ===
=== [APPLICAZIONE] ===
| Modello veicolo | Immatricolazione | Kw | Cv |
| BMW 5 (F10) 518 d | 2013/07 - 2014/06 | 100Kw | 136cv |
| BMW 5 (F10) 518 d | 2013/07 - 2014/06 | 105Kw | 143cv |
| BMW 5 (F10) 518 d | 2013/10 - 2016/10 | 120Kw | 163cv |
| BMW 5 (F10) 518 d | 2014/07 - 2016/10 | 110Kw | 150cv |
| BMW 5 (F10) 520 d xDrive | 2013/01 - 2014/06 | 100Kw | 136cv |
| BMW 5 (F10) 520 d xDrive | 2013/01 - 2014/06 | 147Kw | 200cv |
| BMW 5 (F10) 520 d xDrive | 2013/07 - 2014/06 | 135Kw | 184cv |
| BMW 5 (F10) 520 d xDrive | 2013/10 - 2016/10 | 120Kw | 163cv |
| BMW 5 (F10) 520 d xDrive | 2013/10 - 2016/10 | 155Kw | 211cv |
| BMW 5 (F10) 520 d xDrive | 2014/07 - 2016/10 | 140Kw | 190cv |
| BMW 5 (F10) 520 d xDrive | 2014/07 - 2016/10 | 151Kw | 205cv |
| BMW 5 (F10) 520 d | 2010/06 - 2014/06 | 135Kw | 184cv |
| BMW 5 (F10) 520 d | 2010/06 - 2014/06 | 147Kw | 200cv |
| BMW 5 (F10) 520 d | 2010/06 - 2016/10 | 120Kw | 163cv |
| BMW 5 (F10) 520 d | 2013/01 - 2014/06 | 100Kw | 136cv |
| BMW 5 (F10) 520 d | 2013/10 - 2016/10 | 155Kw | 211cv |
| BMW 5 (F10) 520 d | 2014/07 - 2016/10 | 140Kw | 190cv |
| BMW 5 (F10) 520 d | 2014/07 - 2016/10 | 151Kw | 205cv |
| BMW 5 (F10) 520 i | 2011/09 - 2016/10 | 120Kw | 163cv |
| BMW 5 (F10) 520 i | 2011/09 - 2016/10 | 135Kw | 184cv |
| BMW 5 (F10) 520 i | 2013/07 - 2016/10 | 125Kw | 170cv |
| BMW 5 (F10) 523 i | 2009/06 - 2011/08 | 150Kw | 204cv |
| BMW 5 (F10) 523 i | 2010/01 - 2011/08 | 150Kw | 204cv |
| BMW 5 (F10) 523 i | 2010/01 - 2011/08 | 155Kw | 211cv |
| BMW 5 (F10) 525 d xDrive | 2011/09 - 2016/10 | 155Kw | 211cv |
| BMW 5 (F10) 525 d xDrive | 2011/09 - 2016/10 | 160Kw | 218cv |
| BMW 5 (F10) 525 d | 2010/03 - 2011/08 | 150Kw | 204cv |
| BMW 5 (F10) 525 d | 2011/09 - 2016/10 | 155Kw | 211cv |
| BMW 5 (F10) 525 d | 2011/09 - 2016/10 | 160Kw | 218cv |
| BMW 5 (F10) 528 i xDrive | 2011/09 - 2016/10 | 180Kw | 245cv |
| BMW 5 (F10) 528 i | 2010/03 - 2011/08 | 190Kw | 258cv |
| BMW 5 (F10) 528 i | 2011/09 - 2016/10 | 180Kw | 245cv |
| BMW 5 (F10) 530 i | 2011/05 - 2013/06 | 200Kw | 272cv |
| BMW 5 Touring (F11) 518 d | 2013/07 - 2014/06 | 105Kw | 143cv |
| BMW 5 Touring (F11) 518 d | 2013/07 - 2017/02 | 100Kw | 136cv |
| BMW 5 Touring (F11) 518 d | 2014/07 - 2017/02 | 110Kw | 150cv |
| BMW 5 Touring (F11) 518 d | 2014/07 - 2017/02 | 120Kw | 163cv |
| BMW 5 Touring (F11) 520 d xDrive | 2013/07 - 2014/06 | 100Kw | 136cv |
| BMW 5 Touring (F11) 520 d xDrive | 2013/07 - 2014/06 | 135Kw | 184cv |
| BMW 5 Touring (F11) 520 d xDrive | 2013/07 - 2014/06 | 147Kw | 200cv |
| BMW 5 Touring (F11) 520 d xDrive | 2014/07 - 2017/02 | 120Kw | 163cv |
| BMW 5 Touring (F11) 520 d xDrive | 2014/07 - 2017/02 | 140Kw | 190cv |
| BMW 5 Touring (F11) 520 d xDrive | 2014/07 - 2017/02 | 151Kw | 205cv |
| BMW 5 Touring (F11) 520 d xDrive | 2014/07 - 2017/02 | 155Kw | 211cv |
| BMW 5 Touring (F11) 520 d | 2010/06 - 2014/06 | 135Kw | 184cv |
| BMW 5 Touring (F11) 520 d | 2010/06 - 2014/06 | 147Kw | 200cv |
| BMW 5 Touring (F11) 520 d | 2010/06 - 2017/02 | 120Kw | 163cv |
| BMW 5 Touring (F11) 520 d | 2014/07 - 2017/02 | 140Kw | 190cv |
| BMW 5 Touring (F11) 520 d | 2014/07 - 2017/02 | 151Kw | 205cv |
| BMW 5 Touring (F11) 520 d | 2014/07 - 2017/02 | 155Kw | 211cv |
| BMW 5 Touring (F11) 520 i | 2010/10 - 2017/02 | 135Kw | 184cv |
| BMW 5 Touring (F11) 520 i | 2011/09 - 2017/02 | 120Kw | 163cv |
| BMW 5 Touring (F11) 523 i | 2009/11 - 2011/08 | 150Kw | 204cv |
| BMW 5 Touring (F11) 525 d xDrive | 2013/07 - 2017/02 | 155Kw | 211cv |
| BMW 5 Touring (F11) 525 d xDrive | 2013/07 - 2017/02 | 160Kw | 218cv |
| BMW 5 Touring (F11) 525 d | 2010/09 - 2011/08 | 150Kw | 204cv |
| BMW 5 Touring (F11) 525 d | 2011/09 - 2017/02 | 155Kw | 211cv |
| BMW 5 Touring (F11) 525 d | 2011/09 - 2017/02 | 160Kw | 218cv |
| BMW 5 Touring (F11) 528 i xDrive | 2011/09 - 2017/02 | 180Kw | 245cv |
| BMW 5 Touring (F11) 528 i | 2009/11 - 2011/08 | 190Kw | 258cv |
| BMW 5 Touring (F11) 528 i | 2011/09 - 2017/02 | 180Kw | 245cv |
| BMW 5 Touring (F11) 530 i | 2011/07 - 2013/06 | 200Kw | 272cv |
